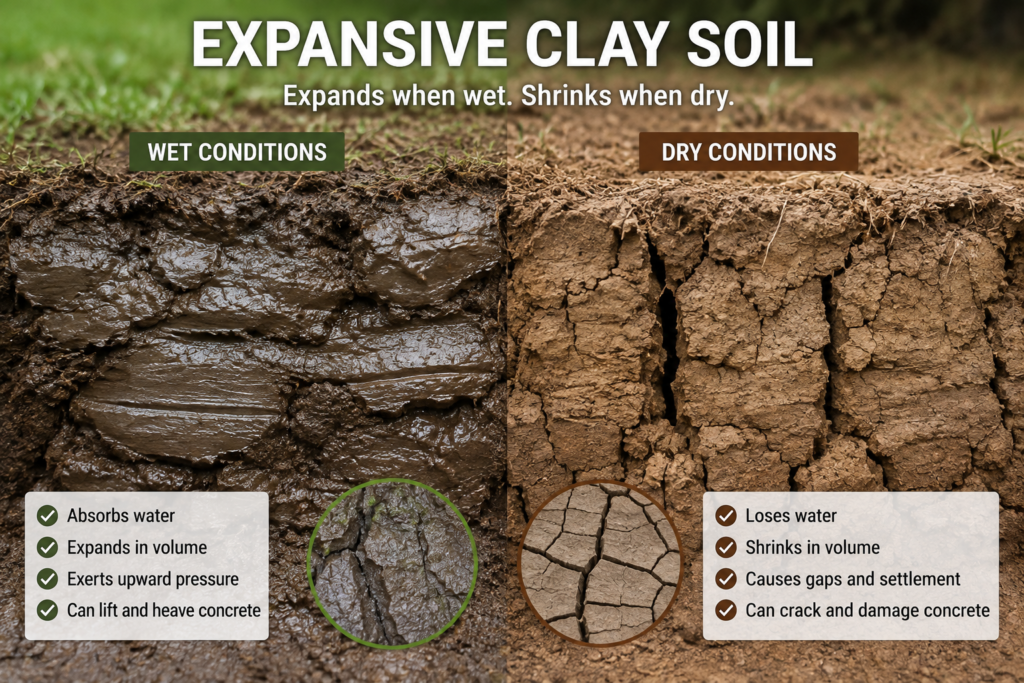

What Is Expansive Clay Soil?
Expansive clay contains minerals that absorb and release significant amounts of moisture.
After periods of rain, the soil absorbs water and increases in volume. During hot, dry North Texas summers, moisture evaporates and the soil contracts.
This creates a repeating cycle:
Wet soil → expansion → upward pressure
Dry soil → shrinkage → loss of support
Concrete is strong, but it isn’t designed to flex significantly. When the ground beneath a slab moves unevenly, the concrete may eventually crack, settle, lift, or separate.
How Clay Soil Causes Concrete to Sink
During prolonged dry conditions, clay soil contracts.
If the soil beneath a driveway or patio shrinks enough, small gaps or voids may develop beneath the slab. Once the concrete loses uniform support, its own weight and the weight of vehicles or other loads can cause portions of the slab to settle.
Common signs include:
- Sunken driveway sections
- Uneven sidewalks
- Low areas in patios
- Separation between concrete slabs
- Changes in elevation near the garage
- Water beginning to collect in previously dry areas
Settlement may occur gradually or become more noticeable following extended drought.
How Expansive Soil Can Lift Concrete
Clay soil can also create the opposite problem.
When dry clay absorbs significant moisture, it expands. If that expansion occurs beneath a concrete slab, the soil can exert upward pressure.
This condition is commonly referred to as heaving.
Signs may include:
- Raised driveway sections
- Sidewalk slabs that no longer align
- Cracks accompanied by vertical displacement
- Raised concrete near landscaping
- Uneven transitions between slabs
Heaving can create trip hazards and interfere with drainage around the property.
Why Concrete Cracks When the Soil Moves
Concrete performs well under compression but has limited ability to tolerate bending.
Imagine one side of a driveway remaining well supported while the soil beneath another section shrinks. The unsupported section begins moving downward while the rest of the slab remains relatively stationary.
That creates stress within the concrete.
Eventually, the stress may exceed what the slab can tolerate and a crack develops.
The same principle applies when expansive soil pushes one section upward.
This is why concrete cracks often appear near areas where elevation changes are occurring.
Drought Can Be Particularly Hard on North Texas Concrete
Extended drought is one of the most important contributors to soil movement in the Dallas–Fort Worth area.
As clay soil loses moisture, it can shrink and pull away from concrete edges. In severe dry periods, visible gaps may develop between the soil and slabs.
Trees can intensify this effect.
Large root systems draw moisture from surrounding soil, sometimes creating significantly drier conditions beneath one side of a driveway, sidewalk, or patio.
Homeowners may notice new cracking or settlement near mature trees during particularly dry summers.
Heavy Rain Can Create the Opposite Problem
After an extended dry period, heavy rain can cause clay soils to begin absorbing moisture again.
The soil expands as moisture returns.
If water is distributed unevenly around the property, some areas may expand faster than others. This can place additional pressure beneath concrete that has already experienced settlement during drought.
The repeated dry-shrink-wet-expand cycle is one reason concrete movement can continue over many years.
Poor Drainage Makes Soil Movement Worse
Drainage plays an important role in controlling moisture around concrete.
Problems commonly include:
- Downspouts discharging next to slabs
- Water pooling beside driveways
- Poor yard grading
- Irrigation leaks
- Erosion beneath concrete edges
- Clogged surface drains
- Water collecting near patios or walkways
Excessive water can saturate expansive clay while flowing water may also wash supporting soil away from beneath a slab.
Correcting drainage problems can therefore be an important part of addressing concrete movement.
Trees Can Affect Concrete in More Than One Way
Tree roots are often associated with concrete damage because roots can physically lift sidewalks and driveways.
However, trees can also influence concrete indirectly by changing soil moisture.
Large trees may draw substantial amounts of water from surrounding soil. If one side of a concrete slab dries more quickly than another, differential soil shrinkage can develop.
This doesn’t mean healthy trees automatically need to be removed. It does mean tree location, root growth, soil conditions, and moisture patterns should be considered when investigating concrete movement.
Warning Signs of Clay-Related Concrete Movement
Watch for changes including:
- New or widening cracks
- Cracks with vertical displacement
- Sunken slabs
- Raised concrete
- Uneven expansion joints
- Soil pulling away from slab edges
- Water pooling in new locations
- Trip hazards
- Gaps beneath concrete
- Repeated cracking after previous repairs
One small hairline crack isn’t necessarily evidence of a significant soil problem. Changes in elevation and cracks that continue developing over time deserve more attention.
Can Concrete Damaged by Expansive Clay Soil Be Repaired?
Often, yes.
If the existing slab remains structurally sound, replacement may not be necessary.
Depending on the problem, repair options may include:
- Concrete leveling
- Polyurethane foam lifting
- Crack repair
- Joint repair
- Void filling
- Drainage improvements
- Soil stabilization
- Partial concrete replacement
Concrete that is severely fractured, deteriorated, or structurally compromised may be a better candidate for replacement.
A professional inspection can help determine whether repair or replacement provides the better long-term solution.
Why Fixing the Crack Alone May Not Solve the Problem
A common mistake is treating the visible crack without considering what caused it.
Filling a crack can improve appearance and help reduce water intrusion, but it doesn’t necessarily stop the soil beneath the slab from moving.
If settlement, erosion, drainage, or expansive soil movement continues, the repaired crack may reopen or another crack may develop nearby.
The best repair strategy considers both the damaged concrete and the conditions beneath it.
How Can North Texas Homeowners Reduce Concrete Movement?
You can’t eliminate expansive clay soil, but you can help reduce extreme moisture changes around your property.
Consider these practices:
- Keep gutters and downspouts functioning properly.
- Direct roof runoff away from concrete and structures.
- Correct areas where water regularly pools.
- Repair irrigation or plumbing leaks.
- Maintain effective yard drainage.
- Watch for erosion along slab edges.
- Monitor concrete during extended drought.
- Inspect areas near large trees for changes.
- Address settlement before it becomes severe.
The goal is not to keep the soil constantly wet. Instead, good property maintenance helps reduce extreme and uneven moisture conditions.
When Should You Have Your Concrete Inspected?
Consider a professional concrete evaluation if you notice significant settlement, lifting, widening cracks, vertical displacement, recurring cracks, or drainage problems around a slab.
An inspection can help determine whether the problem is primarily cosmetic or whether soil movement is affecting the concrete’s stability.
Identifying the underlying cause early may also provide more repair options before the slab becomes extensively damaged.
